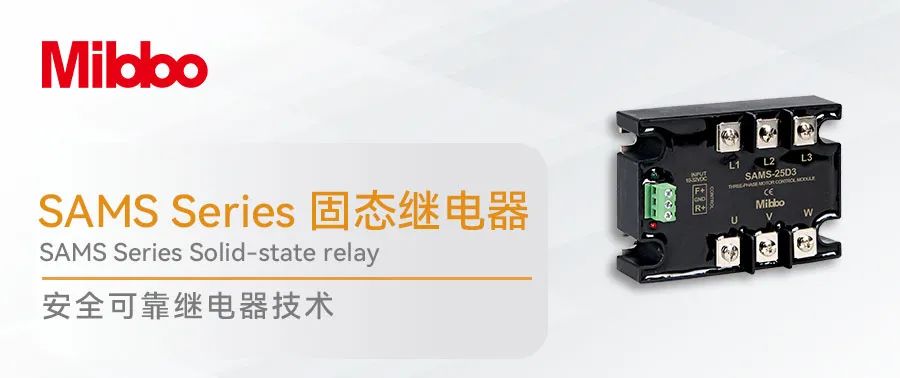

SAMS Series Three-Phase Motor Forward and Reverse Solid State Relays for Packaging Equipment
Release time:
2023-11-20
Source:
Mibbo
Degassing ton bag packaging machine is a special equipment used for large bag and container bag packaging. SAMS three-phase solid state relays provide stable operation for packaging equipment.

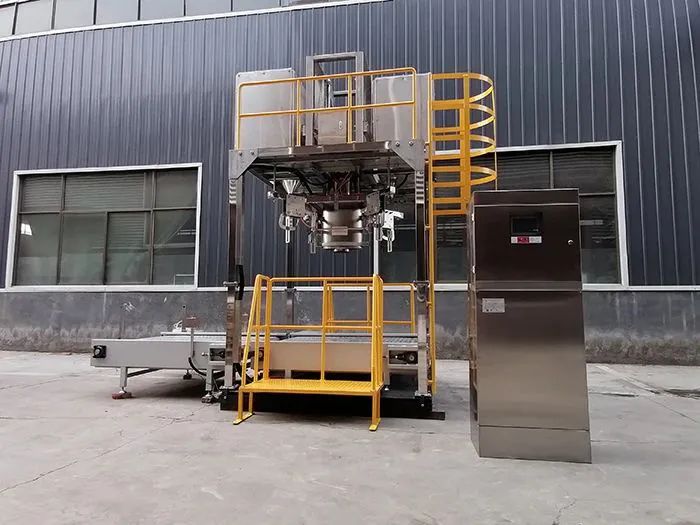

Degassed ton bag packing machine
Solid state relays are switched on and off without contact, and do not make noise when switched on and off. Small currents control large currents. It is suitable for frequent on-off of high-power loads. It is often used to control the heating tube, and is used with a thermostat for constant temperature control, and the heat dissipation should be paid attention to when using the solid state relay.
SAMS Series three-phase motor forward and reverse solid state relay, the control loop contains logic interlock, delay circuit, and the switching time between forward and reverse rotation is greater than 80mS, so as to avoid damage caused by the non-complete disconnection of the thyristor and possible signal triggering. The load current is 25A, 40A, 60A, the load voltage is 48~440VAC, 48~530VAC, and the built-in RC absorption circuit. It is widely used in some harsh use occasions, such as motor actuation control, including steam valves, flow control, and shut-off valve actuators.
Product Features:
·Random turn-on switch
·Rated load current: 25A, 40A, 60A
·10~32VDC control input
·Built-in RC and MOV protection
·Three-phase two-control or three-phase three-control (optional)
·The shell is flame retardant
